FMS FCX18 / FCX24 Metal Gear Steering Servo Upgrade

Metal-gear steering servo upgrade for the FMS FCX18 and FCX24, supplied with a modified proprietary FMS connector for the stock ESC/receiver combo. The output fits the stock servo saver, making this supplied version a direct-fit steering replacement.

Snapshot

• Fitment: FMS FCX18 / FCX24.
• Gears: metal gear train with a metal output spline.
• Connector: pre-modified for the stock FMS ESC/receiver combo.
• Servo saver: direct fit to the original stock servo saver.
• Body dimensions: 23.0 × 12.0 × 23.2mm, per supplier drawing.
• Pack: one servo with the standard accessories pictured; sold individually.

Everything You Need to Know

Modified connector for the stock FMS combo

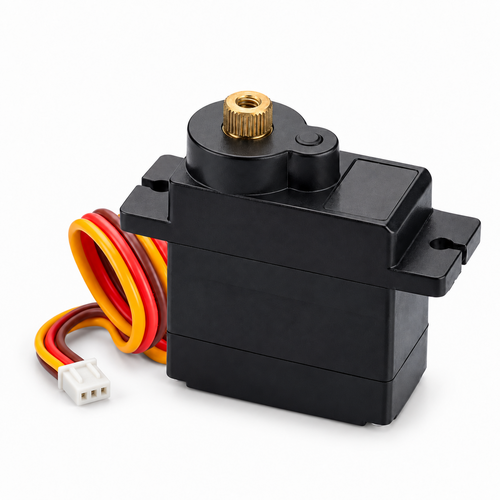

The supplied servo has already been modified with the FMS proprietary connector. It connects to the stock FCX18 / FCX24 ESC/receiver combo without requiring the customer to change the servo connector, and its output fits the stock servo saver.

This is the FCX18 / FCX24 version. For an FCX24M, choose the separate FCX24M upgrade servo.

Construction and dimensions

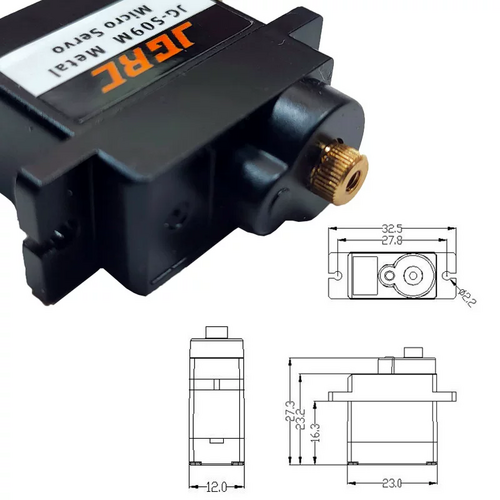

The servo uses a compact black housing, a metal gear train and a metal output spline. Dimensions below are taken from the supplied drawing, in millimetres.

Installation

Fit the servo in the original mounting position, connect it to the stock FMS ESC/receiver combo and transfer the stock servo saver. Centre the servo before fitting the saver and check that the steering linkage moves freely throughout its travel.

What's in the box

• 1 × FCX18 / FCX24 metal-gear steering upgrade servo with the modified FMS connector

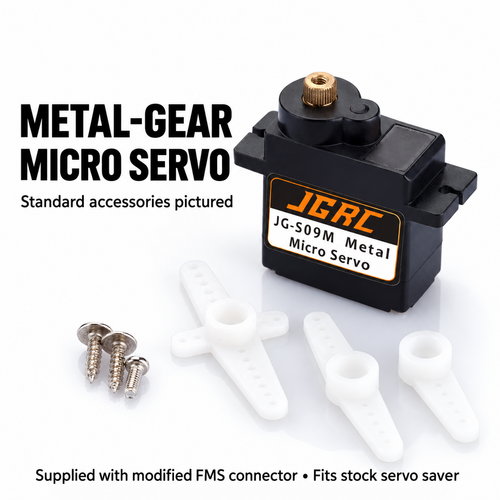

• Standard plastic horns and screws shown in the accessory photo

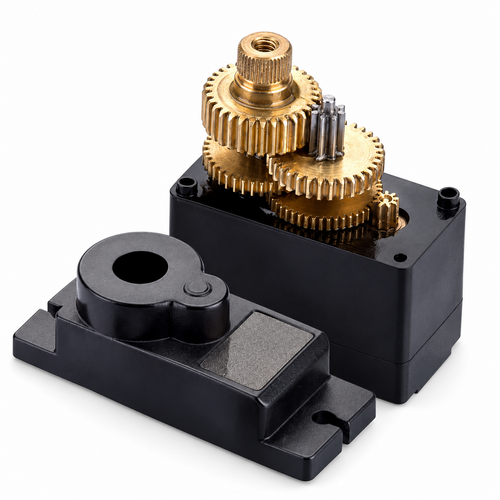

The vendor reference photos show the servo construction and standard accessories. The unit supplied by RC MEGA is fitted with the modified FMS connector; reference photos may show the original connector. The exposed-gear photo illustrates the internal construction.
