XIN HUIKEJI 35kg 180° Servo
Regular price
Rs. 1,350.00
Shipping calculated at checkout.
0 people visited this product this month
Quick specifications
Model Snapshot
Brand
RC Mega
Product Type
Servos
Explore the model
Everything You Need to Know

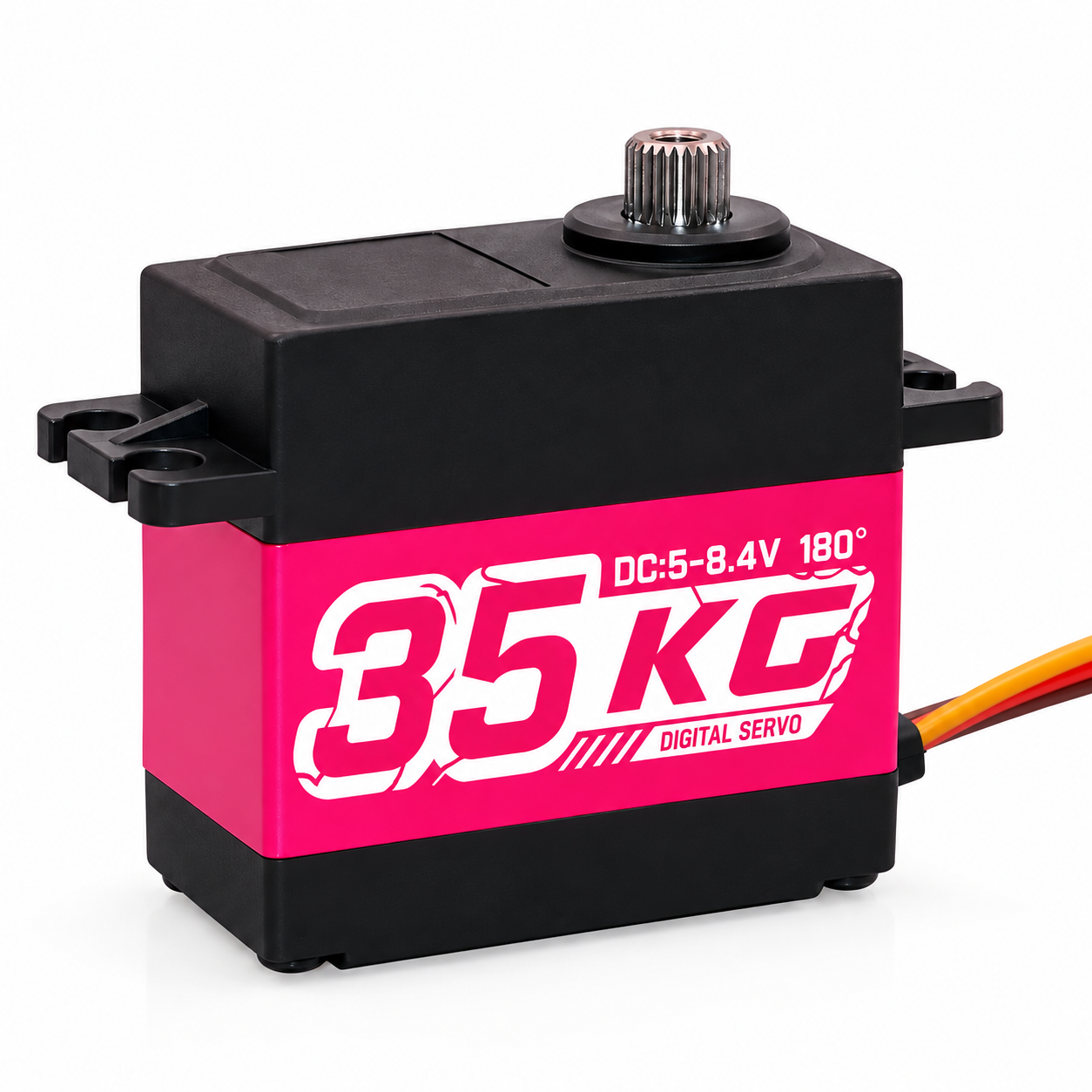

XIN HUIKEJI 35kg digital servo with 180° travel and a 25-tooth output spline for compatible RC installations.
Free metal servo horn included: Every servo comes with its own matching metal servo horn at no extra charge.
Snapshot
- Operating voltage: 5.0–8.4 V DC
- Travel: 180°

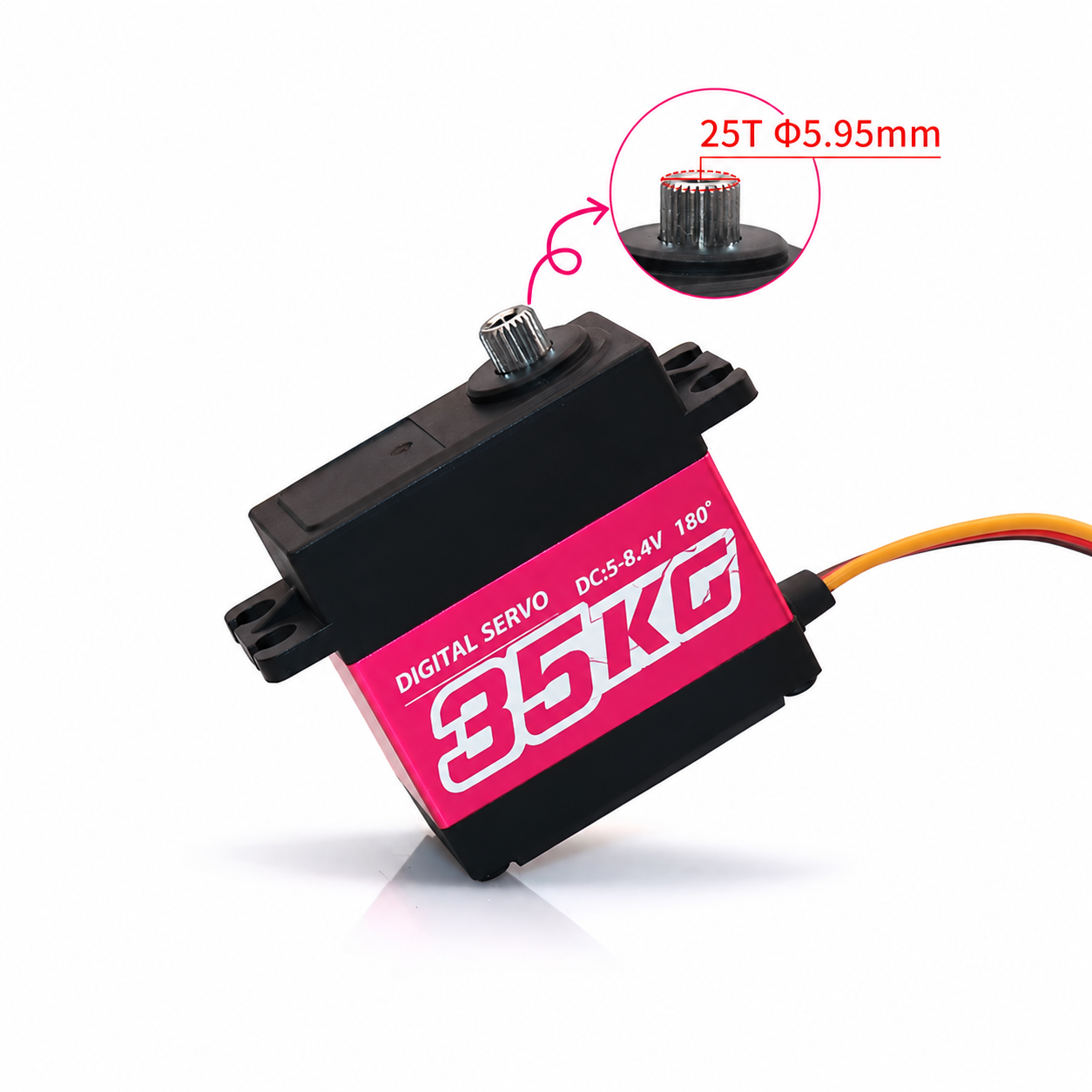

- Output spline: 25T, approximately 6 mm diameter

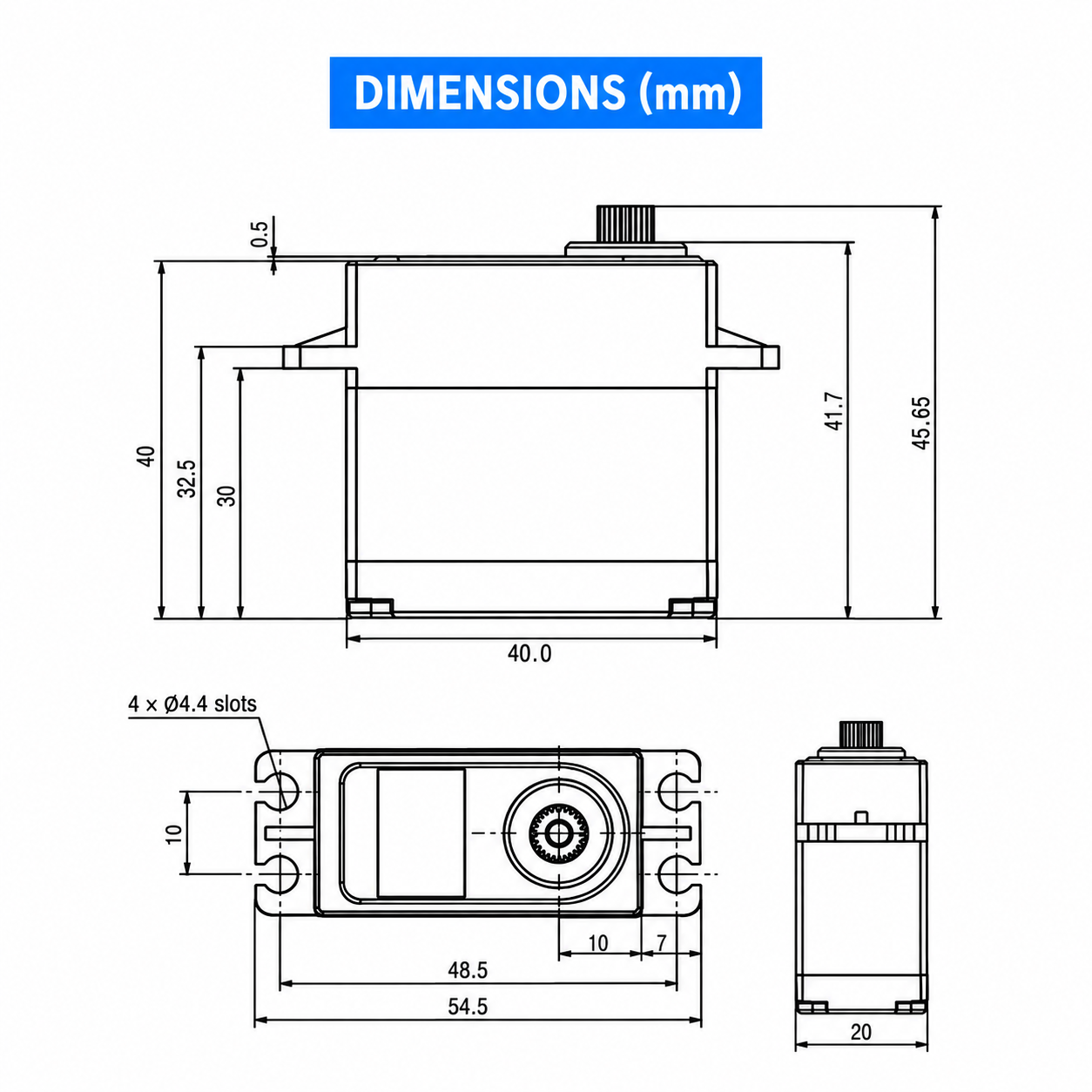

- Body dimensions: 40 × 20 × 40 mm, excluding the output shaft and mounting ears
- Servo weight: 55 g
- Cable length: 30 cm
Everything You Need to Know
The following performance figures are supplied by the manufacturer. Torque and speed depend on the operating voltage.

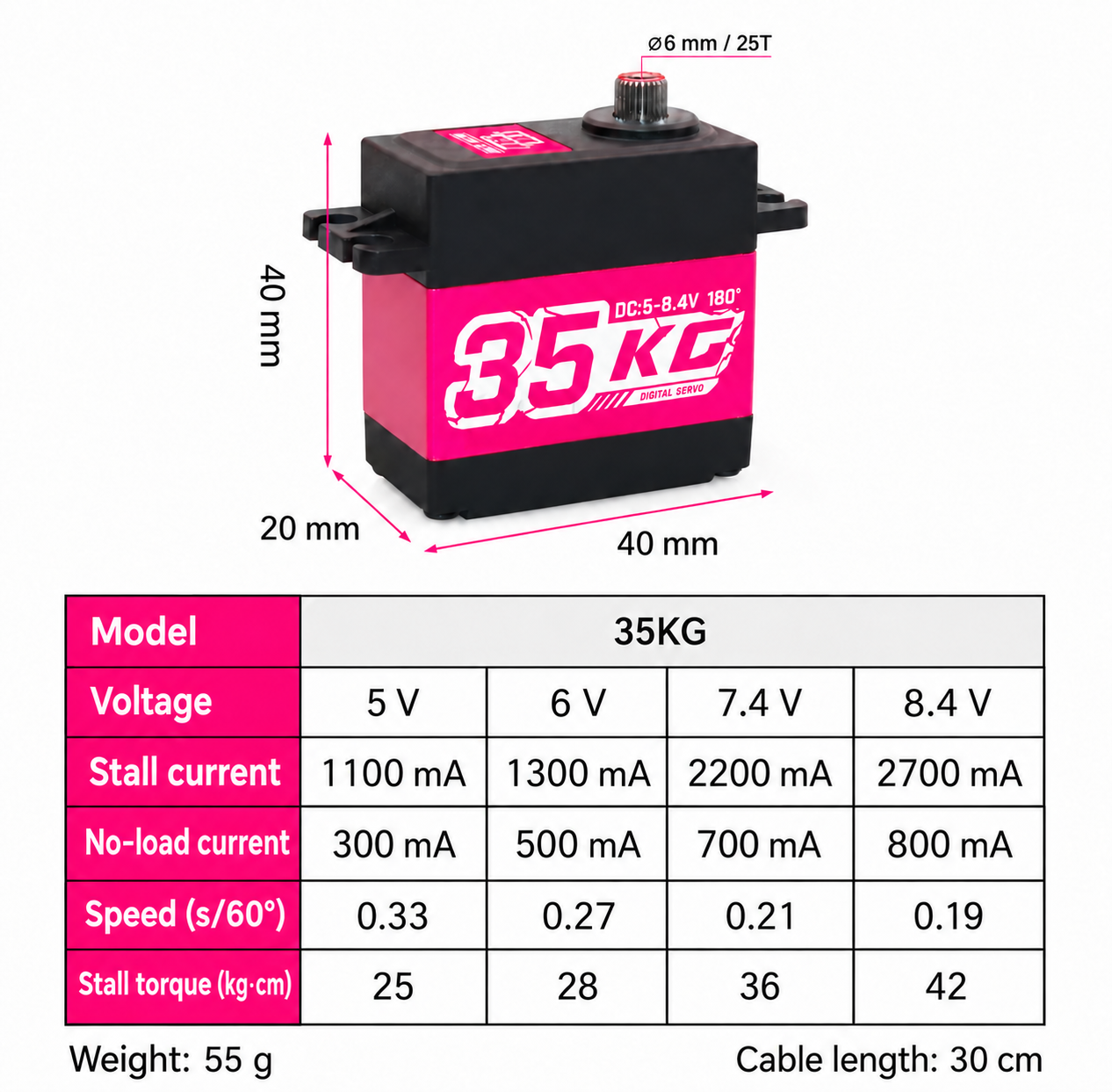

| Specification | 5 V | 6 V | 7.4 V | 8.4 V |
|---|---|---|---|---|
| Stall torque (kg·cm) | 25 | 28 | 36 | 42 |
| Speed (seconds / 60°) | 0.33 | 0.27 | 0.21 | 0.19 |
| Stall current (mA) | 1100 | 1300 | 2200 | 2700 |
| No-load current (mA) | 300 | 500 | 700 | 800 |
Check your servo mount, linkage, and receiver or BEC voltage before installation. Set steering endpoints to avoid binding.

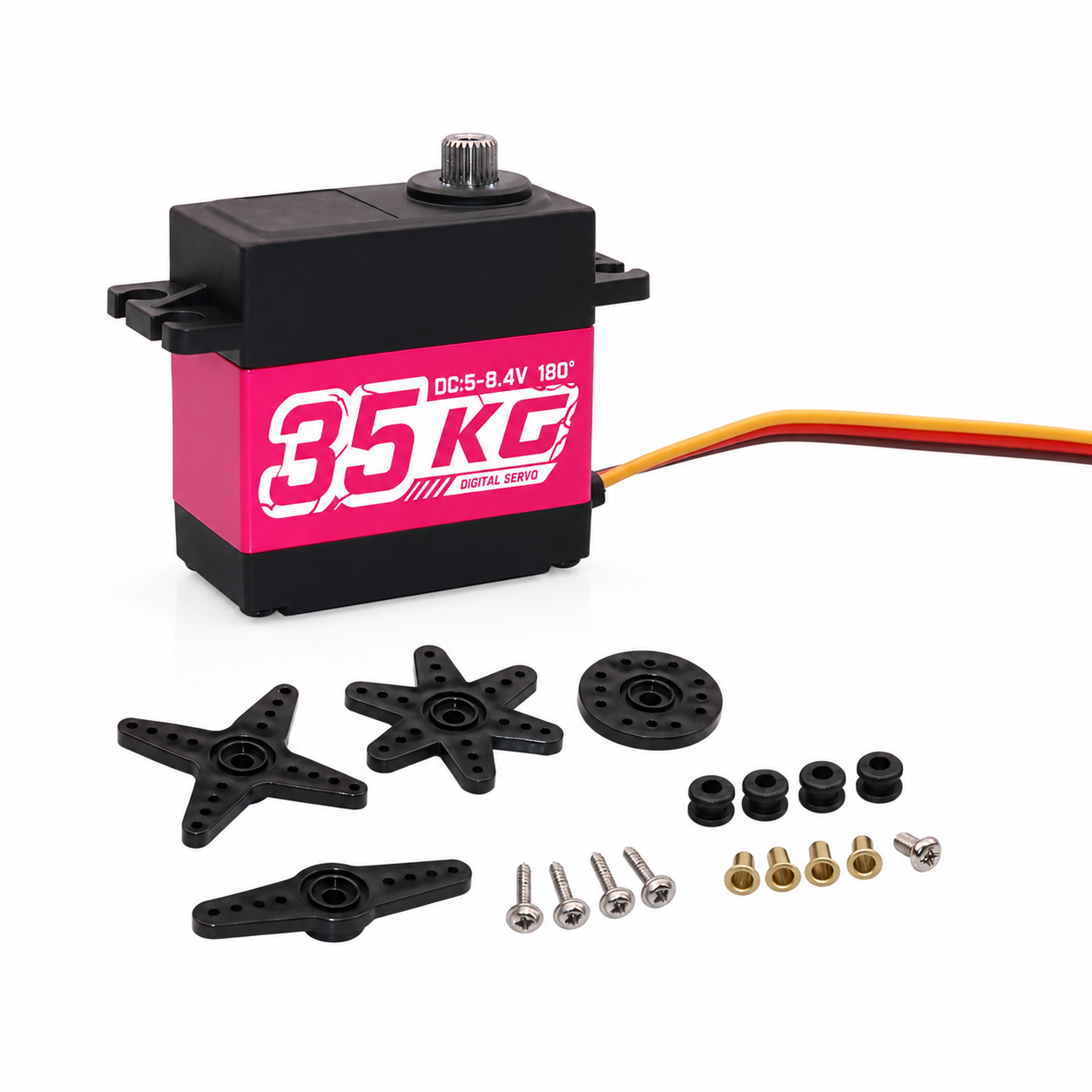

Included
- 1 × XIN HUIKEJI 35kg 180° digital servo
- 1 × matching metal servo horn, included free of charge
