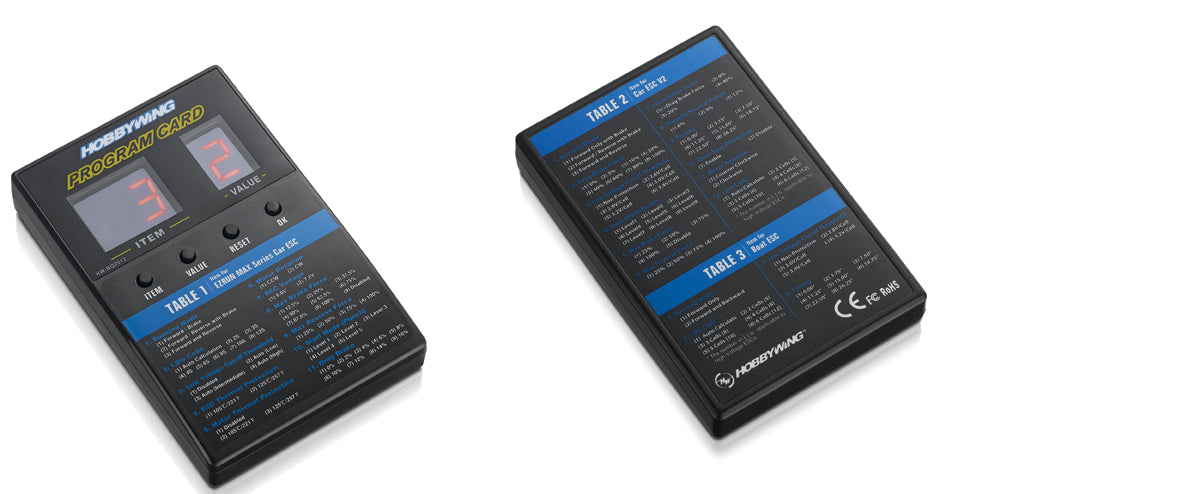

Hobbywing LED Program Box for Brushless ESCs – 30501003

Snapshot

• Brand: Hobbywing
• Product: LED Program Box for compatible brushless ESCs
• Hobbywing part number: 30501003
• Size: 88 × 58 × 14 mm (L × W × H)
• Weight: 40 g
• Input voltage: 4.8–8.4 V

Everything You Need to Know

The Hobbywing LED Program Box is a compact, portable tool for reading and changing programmable settings on supported Hobbywing brushless electronic speed controllers. Its LED interface is suited to setup and adjustment at the workbench or track. The settings and values you can change depend on the connected ESC; consult that ESC's manual for its exact programming menu.

Compatible Hobbywing ESC families

• RC cars: QuicRun and EzRun brushless ESC series, plus supported XeRun models (check the individual ESC manual).
• RC boats: SeaKing brushless ESC series.
• RC aircraft: Platinum V1/V2, FlyFun V5 and SkyWalker V2 brushless ESC series.

Power and compatibility notes

• The program box accepts 4.8–8.4 V. An ESC without an internal or external BEC requires a separate battery to power the box.
• Check your ESC manual for LED Program Box support and its programming connection before ordering. Compatibility is determined by the ESC model, not the vehicle brand or scale.
• This listing is for the programming accessory; the ESC is sold separately.

Manufacturer information: Hobbywing LED Program Box (30501003).
