DS3235SG 35kg Digital Steering Servo
Model Snapshot
Explore the model
Everything You Need to Know
The DSSERVO DS3235SG is a standard-size digital steering servo in the 35 kg·cm torque class for RC vehicles and robotics. Match the dimensions, operating voltage and horn to your installation before use.
Technical specifications
| Model | DS3235SG |
|---|---|
| Control | Digital PWM; 500–2500 μs pulse range; 1500 μs neutral |
| Operating voltage | 5.0–7.4 V DC for the documented 35 kg version |
| Stall torque | 29 kg·cm at 5.0 V; 32 kg·cm at 6.0 V; 35 kg·cm at 7.4 V |
| No-load speed | 0.13 sec/60° at 5.0 V; 0.12 sec/60° at 6.0 V; 0.11 sec/60° at 7.4 V |
| Stall current | 1.9 A at 5.0 V; 2.1 A at 6.0 V; 2.3 A at 7.4 V |
| Dead band | 3 μs |
| Operating frequency | 50–330 Hz |
| Bearings | Dual bearing |
| Water resistance | IP66 rating in the documented specification |

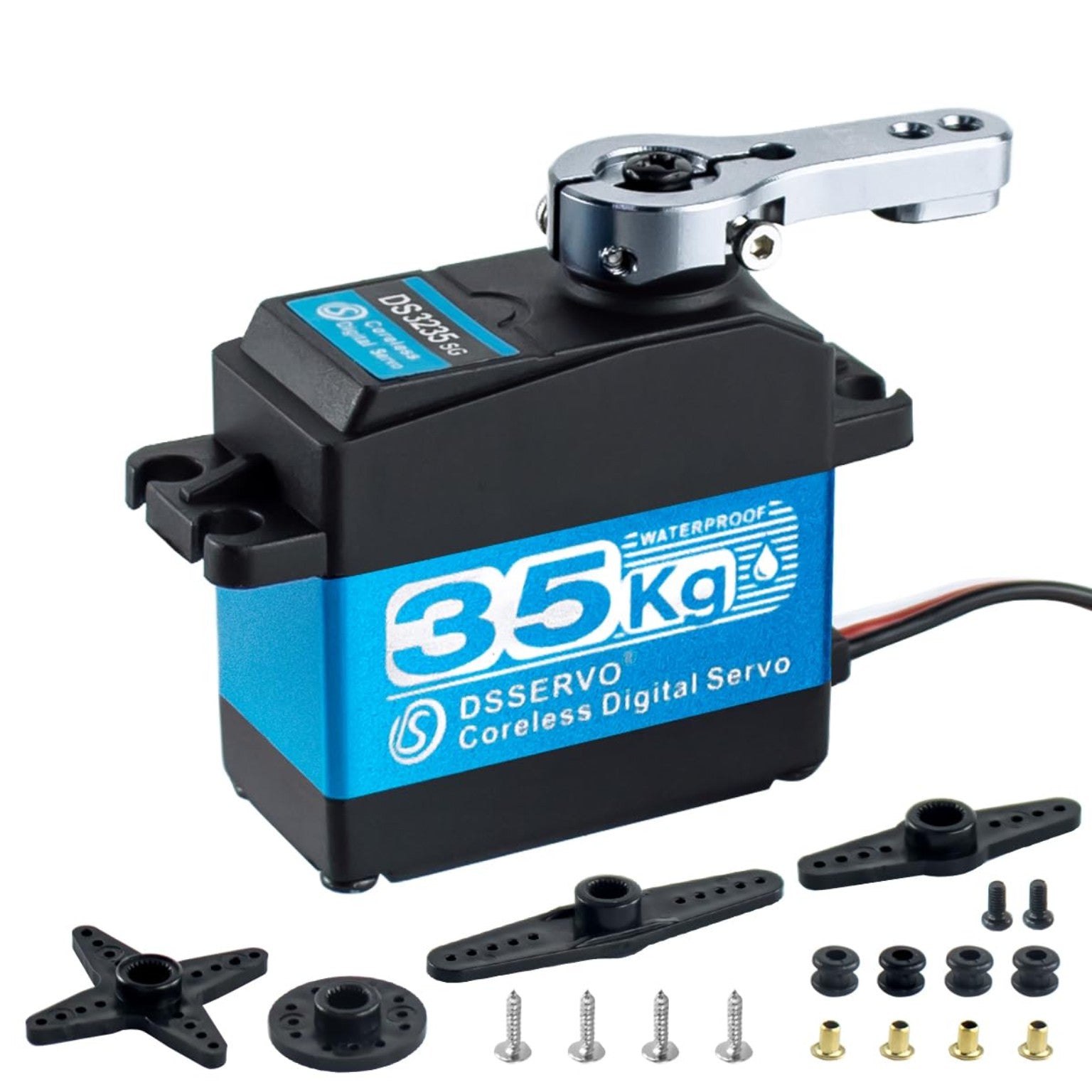

Version check: DS3235SG listings differ on travel angle, motor design, case dimensions and cable length. Confirm the exact version from the packaging or a clear photo before relying on those values. A suitable power supply and matching receiver/BEC are required; stall current is a peak load, not normal running current. Horn and mounting hardware contents are pending inspection of this unit.
- Default - Rs. 2,500.00
