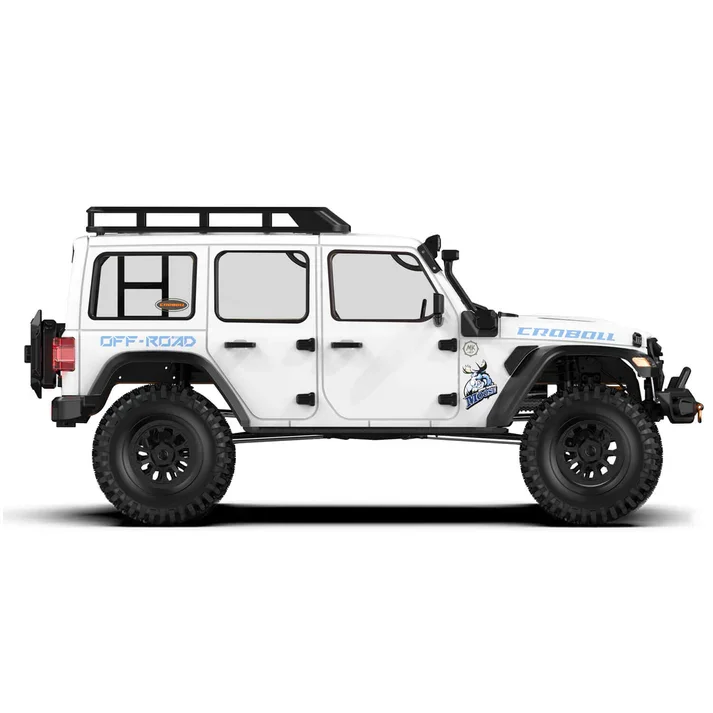

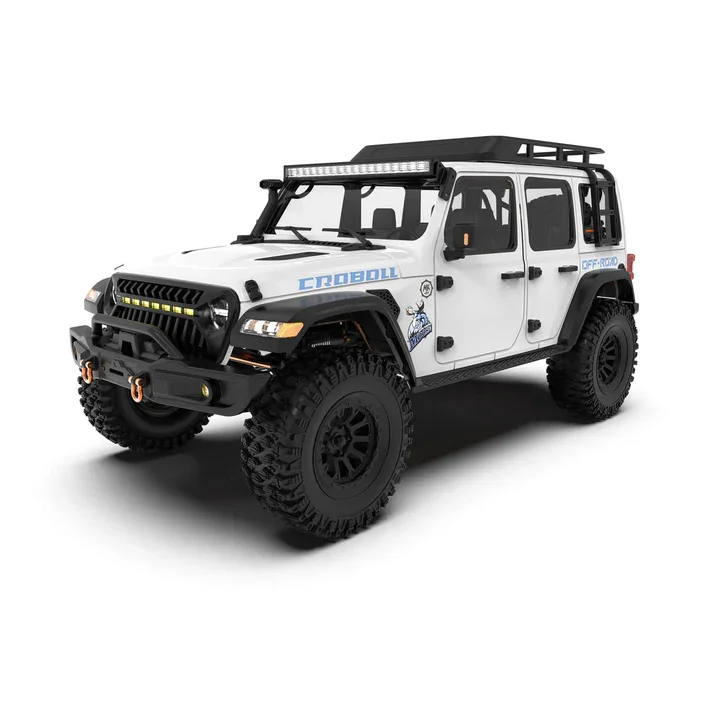

Tackle trails in style with the MK‑07 Brushless, offering full-sized crawler features and serious climbing power in a streamlined single-color design.
🌲 Scale Design & Trail-Ready Styling
- Built on a 439 mm wheelbase with 145 mm diameter, 58 mm width tires for stability and realistic trail handling.
- Sharp injection-molded body panels include realistic door handles, mirrors, wipers, and fenders.
Power & Control
- Features a 4282 sensored FOC brushless motor (~2200–2600 KV) with magnetic encoding—factory-calibrated and plug-and-play for smooth, responsive power.
- 140 A FOC vector ESC supports 2–4 S LiPo batteries, offering quieter operation, better torque control, and up to 20 % improved efficiency over square-wave systems.
- Automatically adjusts torque via FOC algorithm during climbs, and features an intelligent cooling fan for efficient thermal control.
- Comes with an 8-channel 2.4 GHz color-screen transmitter/receiver supporting up to 350 m range.
Drivetrain & Terrain Adaptability
- Full CNC chromium steel gearset throughout—including 1.0 cm motor pinion/spur and 0.8 cm transmission gears for rugged reliability.
- Selectable drive modes: switch on the fly between full‑time 4WD, front‑drive, or rear‑drive to optimize for traction or descent.
- Lockable differentials front and rear: unlock for smoother steering and tighter turns; lock for traction through tougher terrain.
Chassis & Handling Features
- Forward‑mounted gearbox lowers center‑of‑gravity and reduces torque twist for improved stability on climbs.
- Three‑link Panhard steering linkage system greatly reduces lateral body sway and improves steady handling over rugged terrain.
- Equipped with twin friction‑plate slipper clutch to protect gears and motor under load or sudden catches.
Included & Needed
- Vehicle arrives fully assembled with motor, ESC, servos, and radio system—all set for action upon battery installation.
- Battery and charger sold separately—requires XT60-connected LiPo (up to 4 S supported).
📌 Quick Specs
| Feature Detail |
| Scale | 1:7 |
| Wheelbase / Tire | 439 mm / 145 mm dia × 58 mm width |
| Motor / ESC | 4282 sensored brushless (~2200–2600 KV) / 140 A FOC vector ESC |
| Drive Modes | 4WD / FWD / RWD selectable |
| Differentials | Front and rear lockable diffs |
| Gearing | Full CNC chromium steel gears |
| Chassis Features | Forward gearbox, portal axle design, 3-link steering |
| Suspension | 120 mm metal shocks, high clearance portal axles |
| Protection | Dual-plate slipper clutch |
| Electronics | 8-channel color transmitter, waterproof servos |
| Power | XT60 LiPo battery & charger not included |
